1P+N Type B 30mA

Clem > 1P+N Type B 30mA

RCBOs
Residual current circuit breakers with overcurrent protection
1P+N Type B 30mA two and a half DIN modules only

RCBOs type B grant protection to persons and machineries in presence of DC current and high frequency AC fault current. Among the several types of RCBOs, type B provide the upmost level of protection.
Some applications’ examples are: protection of electronic loads including frequency converters, electro-medicals’ instrumentation, ventilation systems, PV systems.
For more information about technical characteristics, applications and Standard references concerning type B RCBOs, please click here:

Technical Information

RCBOs’ mechanism is trip-free, that is the RCBOs can also trip when the lever is held in ON position.
All RCBOs are equipped with a visual indicator which discriminates residual current tripping (blue) from overload tripping (transparent) and with a green led signaling that the voltage is sufficient for product’s functioning as type B.
All products must be power supplied from the power side. Furthermore “cage” type terminals facilitate connection both through conductors (up to 35 mm² rigid and 25mm² flexible) and through busbars (both pin or fork types).

The new CLEM range of RCBOs 1P+N type B is in just two and a half DIN modules, thus granting the maximum protection level in the most compact space.

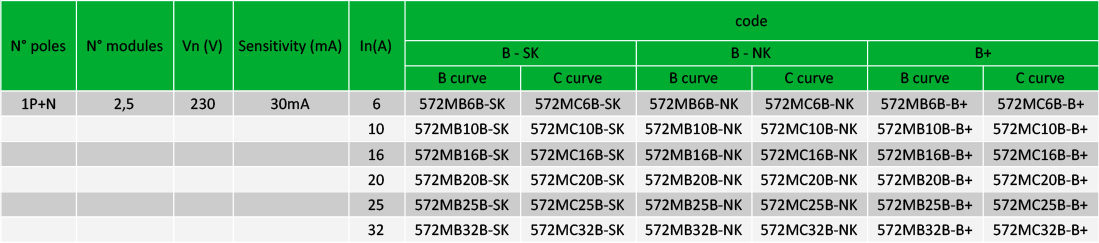

Technical information
